Hydraulic Portable Manual Pipe Bender SWG-3 with 180 KN Output and 320 Stroke
SWG Aluminum Hydraulic Busbar Bending Machine Fixed Structure
Hydaulic Pipe bender Products
| Item number | 06250 | 06250-1 | 06250-2 | 06250-3 | 06250-4 | 06250-5 |
| Model | SWG-25 | SWG-1 | SWG-2 | SWG-3 | SWG-4 | SWG-5 |
| Out put | 60 | 100 | 160 | 180 | 200 | 200 |
| (MM) Stroke | 120 | 160 | 230 | 320 | 380 | 380 |
| Wall thickness(mm) | 1.5-5 | 2-5 | 2.5-5 | 2.5-5 | 2.5-6 | 2.5-6 |
| Weight | 16 | 20 | 47.5 | 97 | 137 | 186 |
| (rad) Bending angle | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | π/2≤a<π | ≤90° |
| (mm) Pipe diameter | Φ10 Φ13 Φ16 Φ19 Φ22 Φ25 | Φ13 Φ16 Φ19 Φ22 Φ28 Φ34 | Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 | Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 | Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 | Φ22 Φ28 Φ34 Φ42 Φ48 Φ60 Φ75.5 Φ89 Φ108 Φ114 |
Configuration: It is suitable for bending and forming of galvanized water pipes,thick steel pipes, conductor pipes and gas pipes.
Features:
1 Manual hydraulic pipe bender is suit for common water pipe, wire pipe, thick-wall conduit tube, bending the angle with 90º.
2 1/2”-2” can be shaped 90º one time, for 2 1/2”-4”, pipe must be moved and bended for five times to the demanded radian.
Function
1. It is designed for bending bus bar in 125mm used in power generation factory.powertransmission station and copper bus bar and aluminum bus bar.
2. 2 in l horizontal and erective bending available. lt's really one machine in two function.
3. The hydraulic cylinder with 35 Ton of outlet force. lt's very powerful in quick speed and high efficiency.
4. It is made in flip style for easy taking workpiece.
5. The unit body is made from high tough alloy steel. As a result,it's light weight for carrying conveniently. Bending bus bar smoothly
6. Ouick coupling for easy load and unload.
7. Standard and assembling;Horizontal bending die:One moveable die.two errective poles, one adaptor.Erective bending die.one die frame.two big grip plank.two small grip plank.seven crescent die plate,two support for erective bending.
Product Tags:
|
|

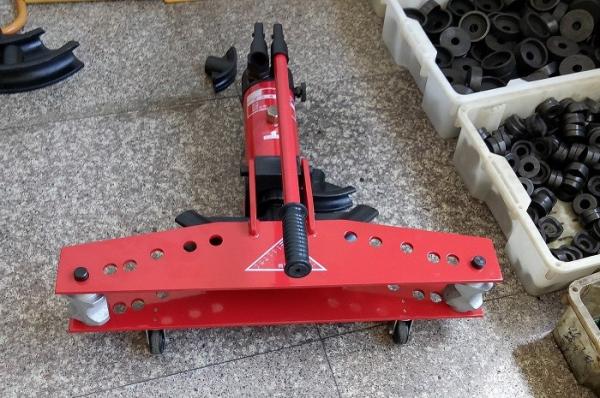

Portable Manual Pipe Bender / Hydraulic Tube Bender 2.5 - 5mm Wall Thickness Images
|
